Orifice Flanges Manufacturer, Supplier, and Exporter in India
Hilton Metal Industries proudly stands as a global leader in the manufacturing of Orifice Flanges. Serving clients across five continents and over 80 countries, we meet international demand with unmatched precision and excellence. Renowned for their reliability and exceptional quality, our Orifice Flanges have earned a stellar reputation worldwide.
At Hilton Metal Industries, we prioritize our clients as partners, striving to deliver not only premium products but also superior service. Our expertise lies in manufacturing Orifice Flanges in diverse shapes, sizes, and specifications, customized to meet each customer’s unique requirements. As a trusted name in the industrial flange market, we are committed to setting new benchmarks for quality and performance.
Orifice Flanges Specification, Grades, and Material
| Studding Orifice Flanges | Specifications |
|---|---|
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75 |
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |
Grades |
|
| Stainless Steel | ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L |
| Super Duplex Steel | S32750 |
| Duplex Steel | ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
| Carbon Steel | ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91 |
| Alloys Steel | ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91. |
| Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 |
| Titanium | Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
| Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
| Molybdenum | ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum |
| Cobalt | Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21 |
| Niobium | ASTM B394, R04200 R04210 |
| Nimonic | Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc |
| Tungsten | W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten |
| Nichrome | Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc |
| Magnesium | Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc. |
| Tantalum | Tantalum – Grade 1. |
| Monel | Monel 400, Monel k500 |
| MU-METAL | MU-METAL |
| Zirconium | Zirconium 702, Zirconium 705,Zirconium 705, Zirconium-2, Zirconium-4 |
| Beryllium Copper | Alloy 25 UNSC17200 |
| Aluminium | 1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175 |
| Copper Alloys | C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000 |
About Orifice Flanges

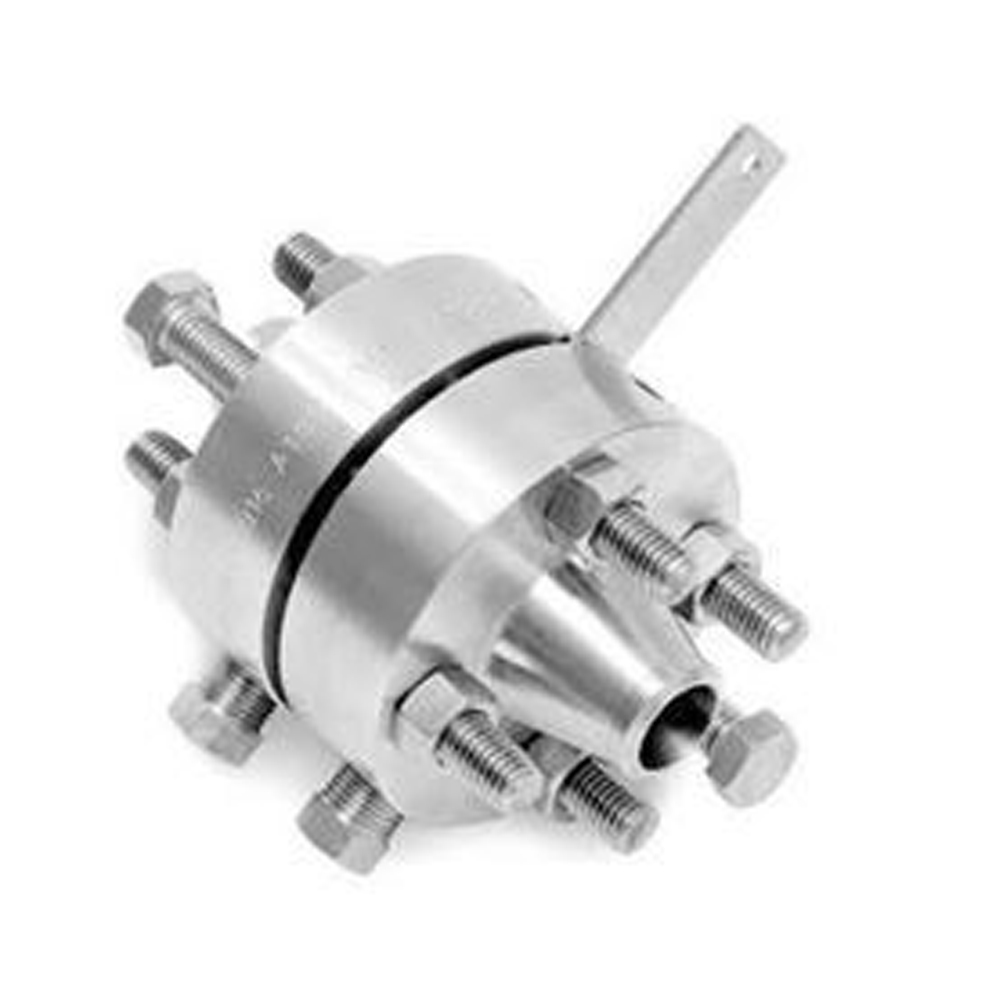

Orifice Flanges are vital components designed to work with orifice meters to measure the flow rate of liquids or gases in pipelines. These flanges are equipped with pairs of pressure “tappings” machined directly into their surface, usually on opposite sides. This eliminates the need for separate orifice carriers or additional pipe wall tappings.
Available with Raised Faces or Ring Type Joint (RTJ) facings, Orifice Flanges are structurally similar to weld neck and slip-on flanges but include additional machining for specialized functionality.
In typical applications, Orifice Flanges are paired with an Orifice Plate and a machined jackscrew. The jackscrew simplifies maintenance by allowing easy separation of the flanges for inspection or replacement of the Orifice Plate and gaskets.
Product Range and Features
Our Orifice Flanges are offered in all standard sizes and pressure classes, manufactured using a variety of commonly used flange materials. They are available in Weld Neck, Slip-On, and Threaded designs. Typically, these flanges are supplied with 2 1/2″ NPT tappings on each flange for enhanced versatility and compatibility.
Thread Connection – NPT
The American National Pipe Thread Tapered (NPT) connection is a widely recognized standard, providing both mechanical and hydraulic sealing. NPT threads are tapered and require Teflon® tape or a jointing compound to ensure a leak-proof seal.
- Standard: ASME B1.20.1 covers dimensions and gauging for general-purpose NPT pipe threads.
- Orifice Flange Dimensions: ASME B16.36 defines dimensions and tolerances for orifice flanges, including orifice pressure differential connections. These standards apply to:
- Welding Neck: Classes 300, 400, 600, 900, 1500, 2500
- Slip-On: Class 300
- Threaded: Class 300
Applications and Uses of Orifice Flanges
Orifice Flanges find wide-ranging applications in multiple industries, including:
- Homes and buildings
- Material transportation systems
- Automotive industry
- Sewerage systems, industrial water lines, and water mains
- Heating, ventilating, and air-conditioning (HVAC) equipment
- Plumbing
- Food Processing Industry
- Paper & Pulp Industry
Our Orifice Flanges are built to meet the highest industry standards, ensuring precision and reliability in every application.
Types of Flanges We Offer
- Socket Weld Flanges
- Threaded Flanges
- Reducing Flanges
- Orifice Flanges
- Industrial Flanges
- Slip on Flanges
- Blind Flanges
- Lap Joint Flanges
- Ring Joint Flanges
- Spectacle Flanges
Orifice Flanges Packaging & Delivery Details
1. Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), other
2. Port of Dispatch: Mumbai OR KALAMBOLI India
3. Packaging Details: Lap Joint Flanges are packaged with caution and safety so they reach our client’s as good as he would expect. Packaging Charges Extra
4. Tax: 18% GST
Hilton Metal Industries: A Leading Supplier of Orifice Flanges in India
Hilton Metal Industries takes pride in being India’s most trusted supplier of Orifice Flanges, recognized for delivering exceptional quality, customer-focused service, and robust in-house processing capabilities. Our commitment to excellence has positioned us among the top suppliers of Orifice Flanges in the country.
As an ISO 9001:2009 certified company with a legacy since 2004, Hilton Metal Industries emphasizes dependability and performance in every product we deliver. We have built a strong reputation as a reliable manufacturer, supplier, and exporter of Orifice Flanges, driven by our unwavering dedication to quality and customer satisfaction.
Client Projects for Orifice Flange Supplier in India
Hilton Metal Industries is proud to be one of India’s foremost dealers of Orifice Flanges, consistently receiving top ratings for our products and services. Each month, we supply Orifice Flanges to around sixty countries, catering to a wide array of industries and clientele. With two decades of expertise, we have shipped over 3500 containers of Orifice Flanges worldwide, earning the trust of clients across the globe.
Our commitment to fast delivery, competitive pricing, and premium quality has solidified our standing as a trusted name in the industry. Across India, Hilton Metal Industries has supplied Orifice Flanges to numerous cities, reaffirming our reputation as a preferred supplier nationwide.
| Product supplied | City |
| Orifice Flanges for Automobile Industry | Delhi, New Delhi |
| Orifice Flanges supply | Hyderabad, Telangana |
| Orifice Flanges supply for Water Supply System | Banglore, Karnataka |
| Orifice Flanges for Chemical industry | Surat, Gujarat |
Experience the Hilton Metal Industries Advantage
With a focus on quality, durability, and customer satisfaction, Hilton Metal Industries is committed to providing the highest standard in hub flanges for industrial applications. Trust Hilton Metal Industries to deliver on precision, quality, and performance—no matter your project’s demands.
