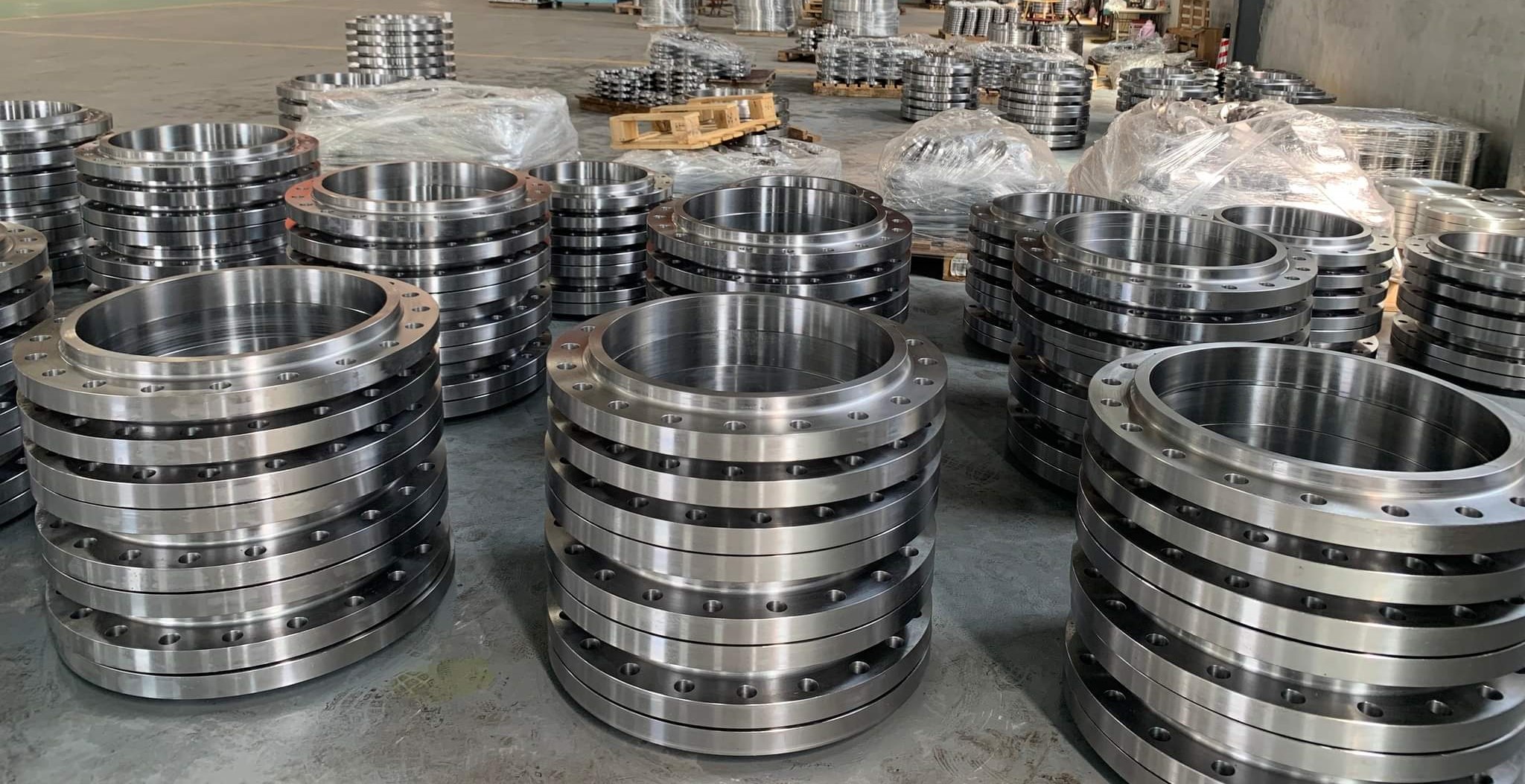

Slip On Flanges Manufacturer in India

About Slip-On Flanges

A slip-on flange, commonly referred to as an SO flange, is designed to slide over a pipe, featuring an internal diameter slightly larger than the pipe itself. This design allows the flange to fit snugly over the pipe, enabling direct connection to equipment or piping via fillet welds at the top and bottom. The primary function of a slip-on flange is to insert the pipe into its inner hole, providing a secure and reliable connection.

Types of Slip-On Flange Welding

Slip-on flanges can be categorized into two main types: Slip-On Welding Plate Flange and Slip-On Welding Neck Steel Pipe Flange. These flanges exhibit mechanical properties that lie between those of lap joint flanges and integral flanges. Their straightforward structure and ease of processing make slip-on flanges widely utilized in various fluid pipeline applications.

Depending on specific requirements, slip-on flanges can also feature different face types, such as ring type joint (RTJ) and raised face types, enhancing their versatility for various piping applications.

Raised Face Slip-On Flange

The raised face slip-on flange features a small protrusion from the bottom face of the flange, serving as a seat for a gasket during installation. This design improves sealing performance, with the height of the raised face increasing with pressure ratings to ensure optimal sealing under varying conditions.

RTJ Slip-On Flange

The raised face section of the slip-on flange may include a small machined groove, known as the Ring Type Joint (RTJ). This groove serves as a seat for a gasket ring, essential for effective sealing. Unlike the raised face type, the RTJ is specifically designed for high-pressure applications, offering a robust design that withstands elevated pressures while maintaining a reliable seal.

Terminology

Slip-on flanges are connected using slip welding, and the following terms are often used interchangeably to describe the same flange:

• Slip-On Weld Flange
• Slip-On Flange Weld
• Weld Slip-On Flange
• Slip-On Flange Welding
• SO

Referred Standards and Grades

• ASTM A105 for carbon steel slip-on pipe flanges
• ASTM A182 for alloy and stainless slip-on flanges (Alloy grades F11, F22; Stainless grades F304/F304L, F316/F316L)
• ASME B16.5 for pipe flanges and flanged fittings
• BS 3293
• DIN 86029

Dimensions and Pressure Ratings

• Common Outer Diameters: 1/2”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, up to 24”
• Special Made Outer Diameters: Up to 60”
• Class Range: Class 150, 300, 400, 600, 900, 1500, 2500 (# or LB); PN 2.5 to PN 250
• Flange Face Types: RF (Raised Face), RTJ (Ring Type Joint)

Manufacturing Types

Slip-on flanges can be manufactured using various methods, including casting, forging, and steel cutting. Among these, forging is recognized for producing high-quality flanges. However, forged slip-on flanges generally come at a higher price point than those manufactured using other methods. Therefore, it is essential to evaluate the specific working environment—considering factors such as pressure, temperature, and corrosion resistance—before selecting the appropriate flange type and manufacturing method that best suits your application.
